YC2010-22 Incremental magnetic encoder for DC motor 12PPR
genuine image
YC2010-22 Incremental magnetic encoder for DC motor 12PPR
Non-contact encoder with dual quadrature outputs and long service life
YC2010-22 Incremental magnetic encoder for DC motor 12PPR
MGT

Item #: 52822638

YC2010-22 Incremental magnetic encoder for DC motor 12PPR

Item #: 52822638

TMT 121

Price Details

Excluding Shipping & Custom charges ( Shipping and custom charges will be calculated on checkout )

*All items will import from US

0 ratings Write a review
In stock
us Imported from USA store

QTY:

Order now and get it around Sunday, July 26
Secured transactionsecured transaction

Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.

Our Top Logistics Partners
  • fedex
  • dhl
Non-contact encoder with dual quadrature outputs and long service life
U-Care Warranty:
None
Select a Plan
fast shipping

Fast
Shipping

free return

Free
Return*

secure packaging

Secure Packaging

100% original products

100% Original Products

pci-dss

PCI DSS Compliance

iso certified

ISO 27001 Certified

paypal payment
visa payment
mastercard payment
Note: Step Down Voltage Transformer required for using electronics products of US store (110-120). Recommended power converters Buy Now.

What Stands Out

High Precision
With 12 pulses per revolution, the YC2010-22 ensures accurate positioning and feedback, making it ideal for applications requiring reliable motion control.
Compact Design
Its compact size allows for easy integration into various DC motor setups, providing flexibility without compromising on performance or space.
Durability
Engineered for longevity, this encoder withstands harsh conditions, delivering consistent performance and reduced maintenance over time, unlike many competitors.

Product Details

Get the YC2010-22 Incremental Magnetic Encoder for DC Motor at Ubuy Turkmenistan. Simple installation, long service life, and high sensitivity. Shop now!

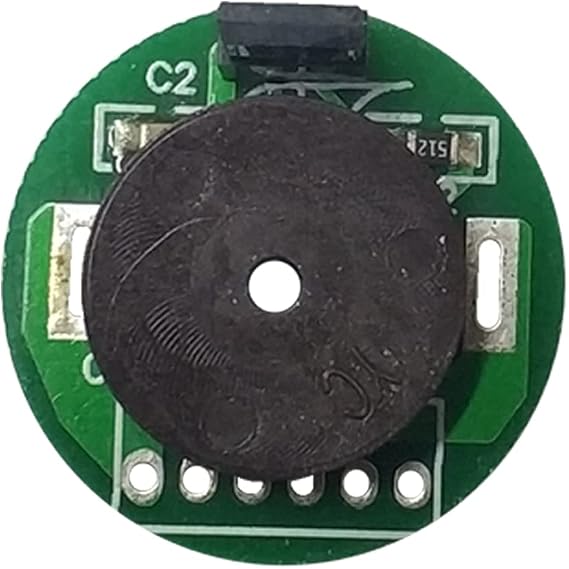

  • PCB Outer Diameter Dimension: 21.06mm, Bore: 3.07mm, Thickness: 1mm
  • Magnetic ring Diameter: 14mm, Bore: 2mm, Thickness: 4mm, Pulse Count: 12ppr
  • Output Type: square wave double phase, Operating Temperature Range: -40℃~85℃
  • Features: Simple structure, easy installation, dual quadrature outputs, non-contact with long service life, superior temperature stability, high sensitivity with a wide voltage range
  • Wiring Diagram: Motor power+, Motor power-, Encoder power-, Encoder power+, A signal, B signal
  • Quality Guarantee: Resolve quality problems via email, continuous improvement of product quality and customer service
Item Weight0.2 lbs (90 grams)

Who Should Buy?

Suitable For
  • Robotics Enthusiasts

    Perfect for hobbyists building robots requiring precise control of motor position with reliable feedback.

  • Automation Engineers

    Ideal for engineers designing automated systems where accurate motor speed and position control is critical.

  • Educational Projects

    Great for students and educators working on projects that need effective motor control and responsive feedback.

Not Suitable For
  • High-Speed Applications

    Not suitable for applications requiring very high speed and precision, as 12PPR may not provide sufficient resolution.

  • Extreme Weather Conditions

    Unsuitable for environments with extreme temperatures or humidity, which could affect encoder performance and accuracy.

  • Heavy Machinery

    Not recommended for use in heavy industrial machinery that requires robust encoders for high torque and stress scenarios.

Product Description

YC2010-22 Incremental magnetic encoder for DC motor 12PPR

About This Item

Introducing the YC2010-22 Incremental Magnetic Encoder for DC Motor 12PPR. This high-quality encoder is designed to enhance the performance of your DC motor and provide accurate and reliable positional feedback. The YC2010-22 encoder includes a PCB board and magnetic ring.

The PCB outer diameter measures 21.06mm with a bore of 3.07mm and a thickness of 1mm. The magnetic ring has a diameter of 14mm, a bore of 2mm, and a thickness of 4mm. With a pulse count of 12ppr, this encoder offers square wave double-phase output for precise monitoring and control of your motor. One of the standout features of this encoder is its simplicity of structure, making it easy to install on your motor.

It also offers dual quadrature outputs, ensuring accurate and reliable signal transmission. Plus, as a non-contact magnetic encoder, it eliminates the risk of wear and tear, providing a long service life. With superior temperature stability and high sensitivities to a wide voltage range, this YC2010-22 encoder can operate flawlessly in temperatures ranging from -40°C to 85°C, making it suitable for various applications and environments. To assist you with installation, we have included a wiring diagram. Simply connect the motor power, encoder power, and A/B signal wires following the provided guide.

Please note that for optimal accuracy, it is essential to align the magnet's centerline within 2 degrees of the chip and position it within 0.1mm of the board's center. At Ubuy, we prioritize product quality and customer satisfaction. If you encounter any quality issues with this encoder, please contact us via email, and our dedicated team will provide a satisfactory solution. We are continuously improving our product quality and customer service to ensure your utmost satisfaction. Invest in the YC2010-22 Incremental Magnetic Encoder for DC Motor 12PPR today and experience improved performance, precise control, and long-lasting reliability.

Order now to take your DC motor to the next level.
